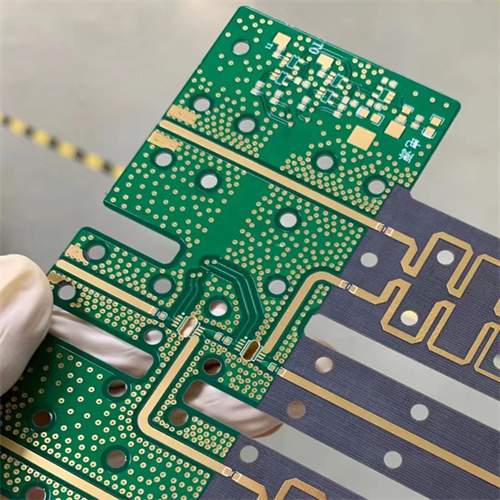

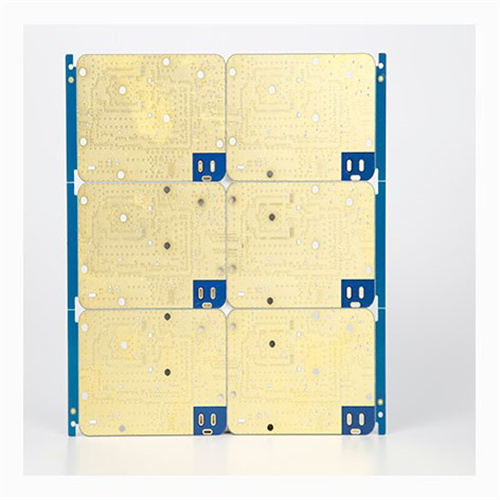

Introduction of Rogers and ISOLA Hybrid PCB
Rogers RO3003 PCB material can be processed by standard PTFE PCB technology for typical applications such as automotive radar, GPS antennas, power amplifiers and antennas in cellular communication systems, patch antennas in wireless communications, live satellite, remote meter reading, power supply backplanes, and data links for limited systems.
Technical parameters of Rogers and ISOLA Hybrid PCB
Model:Rogers RO3003+RO4835+Isola 370HR Hybrid PCB DK:3.48+3.00
Structure: 2L rogres ro4350B+4LFr4+2L rogers ro4835
Layer: 8Layers
Finished Thickness:2.0mm
Material CoThickness:0.50z
Finished CoThickness:0.5oz.1oz
SurfaceTreatment :Immersion Glod
Min Trace/Space3.5mil/3.5mil
Min Hole:Laser Hole 0.1mm
Application : 24g radar antenna pcb, reverse radar pcb
Product features
1.The dielectric loss factor is only 0.0013
2.It can be used in 77GHz high freguency circuit
Temperature characteristics
—Excellent mechanical stability with temperature change
—It can be used in hiah reliability stripline and mu tilaver circuit structure
—It has the same mechanical stability under different dielectric constant
—Ideal material for multilayer circuit board design
—Suitable for mixed design with epoxy glass multilayer circuit board
—It has stable dielectric constant with temperature and freguency
—It can be used in ideal bandpass filters. microstrip patch antennas. and voltaae controlled oscillators
—The coefficient of thermal expansion is equivalent to that of copper
—More reliable SMT process
—It is suitable for temperature sensitive applications
—Excellent mechanical stability
—Batch processing.economical plate
—For more technical information about ro3003. please visit: Rogers RO3003 Technical Specifications.
