Introduction of PTFE PCB
PCB is a very basic material for electronic products, with a broad market demand. Its downstream applications cover communications, computers, consumer electronics, industrial control and medical, automotive electronics, aerospace and many other fields.
Technical parameters of PTFE PCB

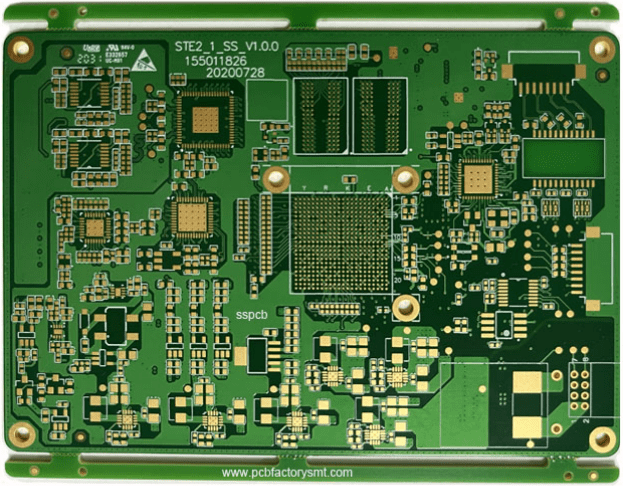

Model : 20 Layers High Speed PCB
Material:TUC/TU872LK
Layer: 20Layers
Finished Thickness:5.0mm
Copper Thickness :Inner/outer1OZ
Color:Green/White
Min Trace/Space:4mil/4mil
Surfacet Treatment:Hard Gold 3-15U
Blind Hole :L3-L20
Application:Communication backplane PCB
SSPCB company focuses on PCB prototypes, the products are mainly 4~48-layer PCB prototypes, including enterprise communication PCB boards, medium and high-grade automotive PCB, industrial equipment PCB as a strong complement, can be widely used in communication equipment, automotive, industrial equipment, microwave radio frequency and other fields; communication PCB applications mainly include wireless networks (communication base stations), transmission networks, data communications and fixed-line broadband Four parts.
FAQ
Q1. What documents do you need to prepare if you want to get a quote from us?
A: PCB boards need to prepare Gerber files, including RS274X, ODB++, DXF, PCB, PCBDOC and other formats.
For PCBA (PCB with soldered components), in addition to the files of PCB, you also need to prepare BOM list (component list), Pick and Place file (txt format), physical sample drawing or 3D PDF version file, etc.
PCB layout requires a PCB schematic and PCB outline drawing.
For PCB design, you need to express your ideas and we will discuss whether we can implement your ideas.
Q2. Do you have a minimum order quantity?
A: We have the flexibility to handle both small and large volume production. We do not have any minimum order quantity, and the smallest order we accept is 1 piece.
In general, the higher the quantity produced, the lower the unit price and the longer the delivery time.
Q3. How can we keep our product information and design documents confidential?
A: Your files are completely safe and secure. We protect the intellectual property of our clients throughout. All files from our clients are never shared with any third party.
Q4. How long is the delivery time?
A: The production time for standard PCB samples is 1-7 days, 7-10 days for small batch production, and 12-25 days for large orders.
For the production of non -standard PCB and PCBA, please send the reference file and production requirements to sales@pcbfactorysmt.com，we will reply to you as soon as possible.
Q5. What are the main products of your PCB / PCBA service?
A: Industrial control, automotive, medical equipment, communication electronics, aviation, LED...
Q6. How long does it take for PCB and PCBA quotation?
A: PCB quotation can be completed within 0.5-2 hours PCBA depends on the number of components, simple can be completed within 6 hours, complex 12-36 hours can be completed.
Q7. Shipping fee?
A: Usually we offer EXW, FCA, FOB, CIF and DDU terms, if there is no special request, the default terms quoted are FOB Shenzhen. Please mention the terms and conditions when you have any request.
We work with courier companies including DHL, FedEx, UPS, TNT and EMS, with air and sea freight also optional.
Shipping costs are determined by the destination, weight, and package size of the shipment. If you need us to quote the shipping cost, please let us know.
Q8. Do you accept process materials from customers?
A: Yes, we can source components and we accept components from our customers.
