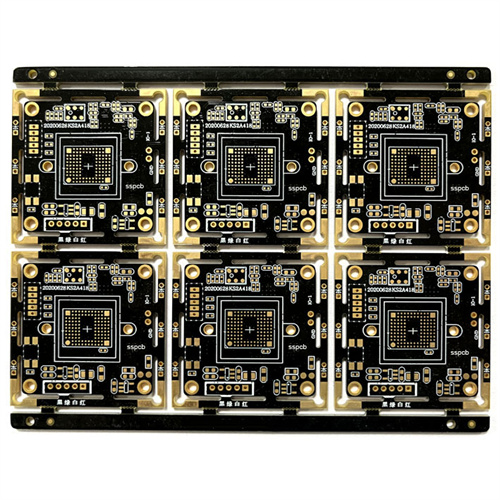

The optical module consists of optoelectronic devices, functional circuits and optical interfaces. The optoelectronic period includes both transmitting and receiving parts.

SSPCB has passed ISO9001, UL, RoHS and other quality control system certifications.

About HDI PCB delivery time: 15~18 days for 12-layer 3-stage HDI PCB proofing, please consult with SSPCB for special multi-layer PCB proofing and bulk delivery.

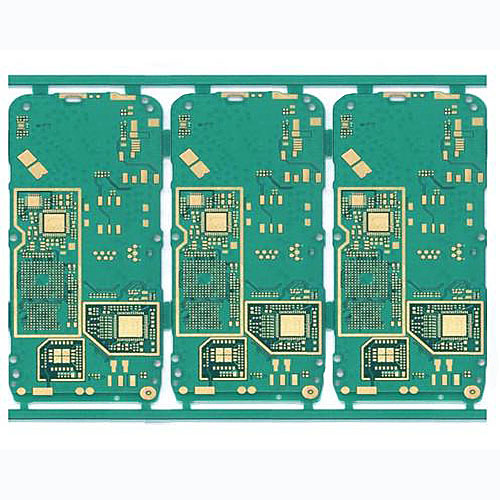

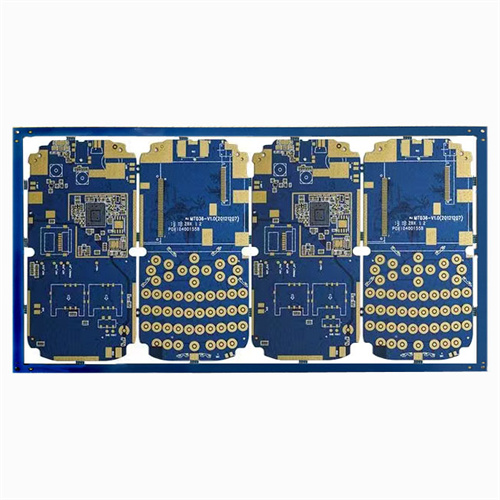

This is a low-cost cell phone PCB, 6 layers of first-order alignment HDI PCB board, process process control, the lowest cost.

We have the flexibility to handle both small and large volume production. We do not have any minimum order quantity, and the smallest order we accept is 1 piece.

The factory production line has introduced precision circuit board production and inspection equipment, and has an experienced PCB production technology team, forming a perfect guarantee system and strict quality control.

All SSPCB employees have 5~16 years of PCB industry experience to ensure high stability and reliability of HDI PCB from technical level, high precision back drilling technology to reduce over-hole equivalent series inductance to meet the integrity requirements of product signal transmission.

SSPCB's high-density circuit boards have the technology to drive applications in a wide range of industries, including but not limited to semiconductor test equipment, medical and aerospace.

Maximum thickness to diameter ratio of 10:1, maximum copper thickness of 6oz, maximum working board size of 2000x610mm.

The factory production line has introduced precision circuit board production and inspection equipment, and has an experienced PCB production technology team, forming a perfect guarantee system and strict quality control.

SSPCB is produced in strict accordance with IPC standards. Acceptance standards to ensure that the products meet customer quality requirements and IPC standards.

Maximum thickness to diameter ratio of 10:1, maximum copper thickness of 6oz, maximum working board size of 2000x610mm.
