Introduction of USB 3.0 PCB Substrate Board
USB 3.0 delivers data rates of up to 5Gbps, 10x faster than high-speed USB 2.0, and optimized for power efficiency.

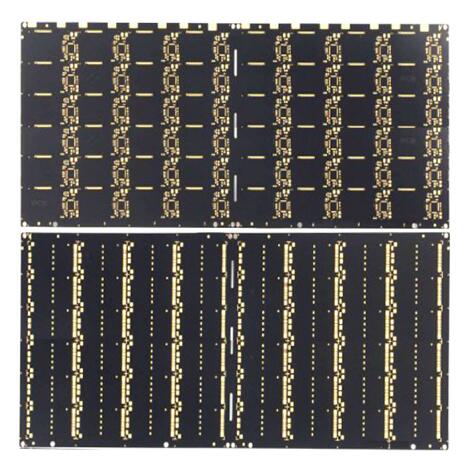

Technical parameters of USB 3.0 PCB Substrate Board
Model: USB 3.0 PCB Substrate Board
Material:SI10U
Layers:4L
Thickness: 0.3mm
Single size: 12.8*38.8mm
Resistance welding: PSR-2000 BL500
Surface treatment: Soft Gold
Minimum aperture:0.1mm
Minimum line distance:75um
Minimum line width:40um
Application: USB 3.0 PCB Substrate Board
USB3.0 PCB design summary
1.USB controller and USB connector should be as close as possible to reduce the length of the alignment. Beads and decoupling capacitors used to decouple and remove high frequency noise interference should be placed as close as possible to the USB interface
2.The end device matching resistor should be placed as close as possible to the end of the USB controller.
3.Voltage regulators should also be placed as close as possible to the connector.
