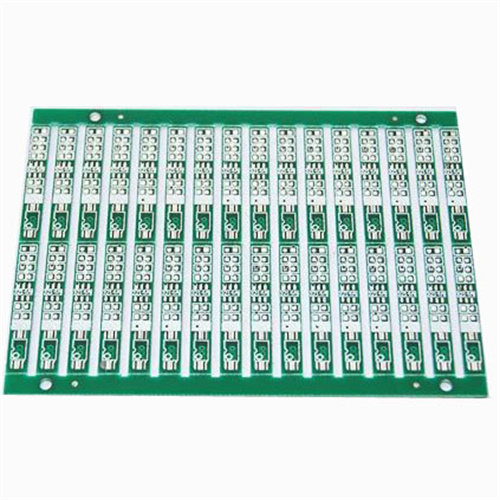

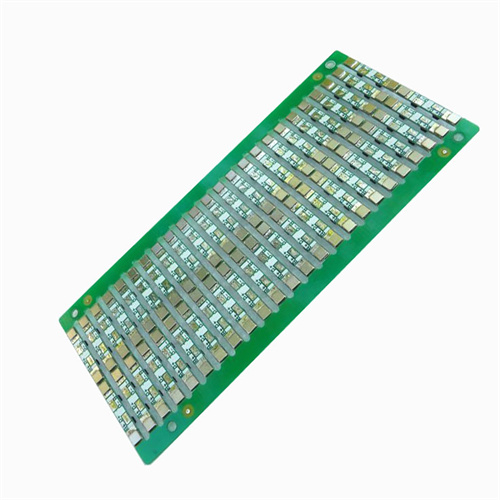

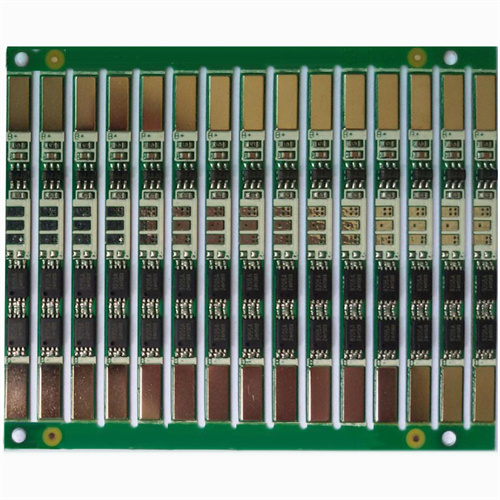

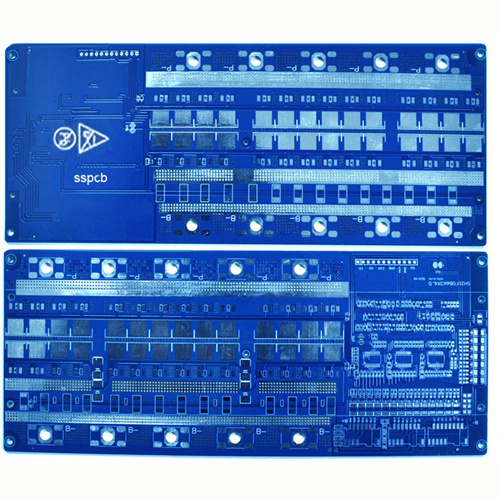

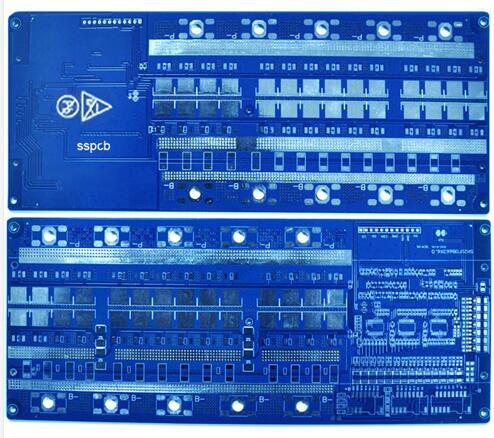

Technical parameters of PCB for battery protection
Model:PCB Board for Battery Protection
Material:FR4
Layer: 2Layers
Color:Black/White
Finished Thickness:0.6mm
Copper Thickness:10Z
Surface Treatment:Immersion Gold
Min Trace:6mil(0.15mm)
Min Space:6mil(0.15mm)
Characteristic:The individual is very small
Application: battery protection PCB board
The main role of the battery protection PCB board is as follows
1.Overcharge protection: charging directly on the phone with the original direct charging device will automatically open the protection circuit of the battery protection board.
2.Discharge protection: instantly short circuit the positive and negative battery poles. Just see the spark on the electrode piece. Try a few more times, then charge directly.
3.Overcurrent and short-circuit protection: find a 5V DC, contact the positive and negative terminals of the battery with the positive and negative terminals, try a few more times, and then charge with the original charger.
