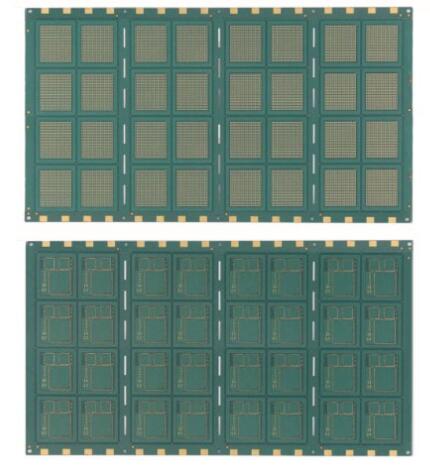

Technical parameters of SiP package substrate
Product Name: SiP Package Substrate
Material: Shengyi SI10U
Layers: 6L
Thickness: 0.5-0.6mm
Single size: 35*35mm
Resistance welding: PSR-4000 AUS308
Surface treatment:ENEPIG
Minimum aperture:0.075/0.1mm
Minimum line distance: 30um
Minimum line width:50um
Application: SiP package IC Substrate PCB Board
Advantages of SiP package IC Substrate PCB board
1. Small size.
On the same function, the SIP module integrates a variety of chips, which can save PCB space compared to individually packaged IC.
2. Fast time.
SIP module board is a system or subsystem, used in a larger system, the debugging phase can be faster to complete the forecast and pre-qualification.
3. Low cost.
SIP module is more expensive than a single piece, but reduces PCB space, low failure rate, low testing costs, simplifies system design and reduces overall costs.
4. High production efficiency.
Through the integration and separation of passive components in SIP, the defect rate is reduced, thus improving the overall product yield. The module adopts advanced IC packaging technology to reduce the system failure rate.
5. Simplified system design.
SIP integrates complex circuitry into the module, reducing the complexity of PCB circuit design. SIP modules provide quick replacement capabilities, allowing system designers to easily add the required functionality
6. Simplify system testing.
SIP modules are tested before they leave the factory, reducing the testing time of the entire system.
7. Simplify logistics management.
SIP module can reduce the number of items in the warehouse and the number of material preparation, simplifying the production steps.
