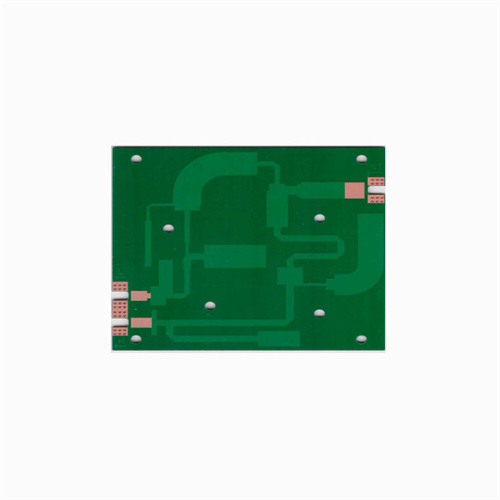

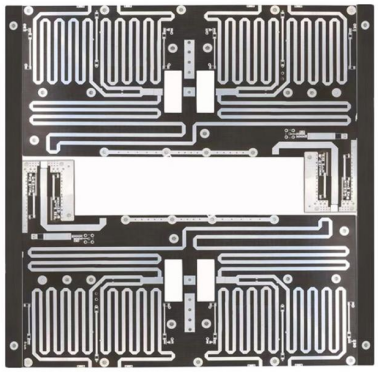

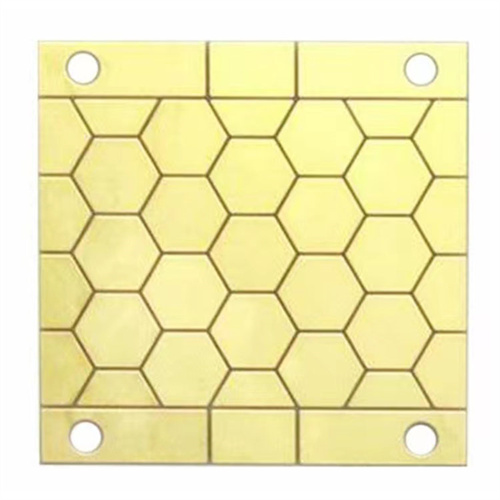

Definition of High-frequency Microwave PCB
High frequency microwave circuit board is a special electromagnetic frequency circuit board for high frequency (more than 300MHZ frequency or wavelength less than 1M) and microwave (more than 3GHZ frequency or wavelength less than 1M) in the PCB field.
Technical parameters of Microwave PCB
Product: Microwave PCB
Materials: Telfon,PTFE,ceramic
Quality standard:IPC 6002
PCB DK: 2.0-1.6
Layer: 1 pcb layer- 36 layers pcb
Thickness: 0.254mm-12mm
Ground technology: Silver,Gold.OSP
Special process: mixed materialsstepped grooves
Application: micro-optical antenna.
Application areas of Microwave PCB
1. mobile communication products, intelligent lighting systems.
2. power amplifiers, low-noise amplifiers, etc.
3. passive devices, such as power dividers, couplers, duplexers, filters, etc..
4. In the field of automotive collision avoidance system, satellite system, radio system, etc., the development trend of electronic equipment is high frequency.
Why choose SSPCB to manufacture Microwave PCB?
1.The processing difficulties of high frequency PCBs.
(1) Sink copper: hole wall is not easy to plating copper.
(2) Switch, etching, line width slot, sand hole control.
(3) Green oil process: control the adhesion of green oil and bubbles.
(4) Strict control of PCB board scratches in each process, etc.
2.Microwave PCBs are very sensitive to noise, impedance, electromagnetic and ESD factors, manufacturers of high-quality PCBs focus on eliminating any influencing factors in the manufacturing process.
3.SSPCB has been providing RF microwave PCB manufacturing facilities for many years, SSPCB staff has expertise in PCB manufacturing based on Rogers (Taconic PCB material); And, SSPCB has extensive experience in RF microwave PCB manufacturing for communication equipment. We can choose the most suitable PCB manufacturing materials according to customer needs.
4.SSPCB as a professional microwave PCB manufacturer, has accumulated rich experience in handling RF microwave PCB projects, and high quality products and excellent customer experience are the important means to enhance our image. We welcome friends who need to email us for PCB manufacturing details.
FAQ
Q1. What documents do you need to prepare if you want to get a quote from us?
A: PCB boards need to prepare Gerber files, including RS274X, ODB++, DXF, PCB, PCBDOC and other formats.
For PCBA (PCB with soldered components), in addition to the files of PCB, you also need to prepare BOM list (component list), Pick and Place file (txt format), physical sample drawing or 3D PDF version file, etc.
PCB layout requires a PCB schematic and PCB outline drawing.
For PCB design, you need to express your ideas and we will discuss whether we can implement your ideas.
Q2. Do you have a minimum order quantity?
A: We have the flexibility to handle both small and large volume production. We do not have any minimum order quantity, and the smallest order we accept is 1 piece.
In general, the higher the quantity produced, the lower the unit price and the longer the delivery time.
Q3. How can we keep our product information and design documents confidential?
A: Your files are completely safe and secure. We protect the intellectual property of our clients throughout. All files from our clients are never shared with any third party.
Q4. How long is the delivery time?
A: The production time for standard PCB samples is 1-7 days, 7-10 days for small batch production, and 12-25 days for large orders.
For the production of non -standard PCB and PCBA, please send the reference file and production requirements to sales@pcbfactorysmt.com，we will reply to you as soon as possible.
Q5. What are the main products of your PCB / PCBA service?
A: Industrial control, automotive, medical equipment, communication electronics, aviation, LED...
Q6. How long does it take for PCB and PCBA quotation?
A: PCB quotation can be completed within 0.5-2 hours PCBA depends on the number of components, simple can be completed within 6 hours, complex 12-36 hours can be completed.
Q7. Shipping fee?
A: Usually we offer EXW, FCA, FOB, CIF and DDU terms, if there is no special request, the default terms quoted are FOB Shenzhen. Please mention the terms and conditions when you have any request.
We work with courier companies including DHL, FedEx, UPS, TNT and EMS, with air and sea freight also optional.
Shipping costs are determined by the destination, weight, and package size of the shipment. If you need us to quote the shipping cost, please let us know.
Q8. Do you accept process materials from customers?
A: Yes, we can source components and we accept components from our customers.
