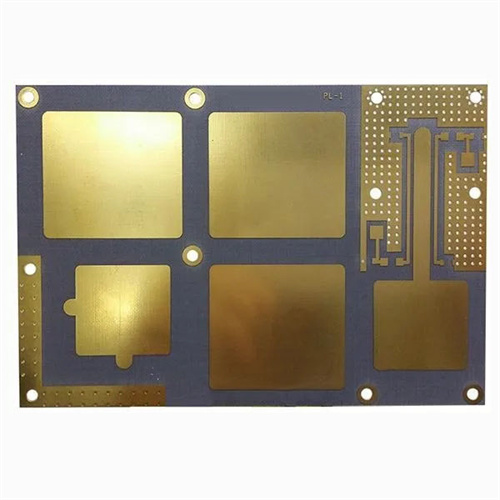

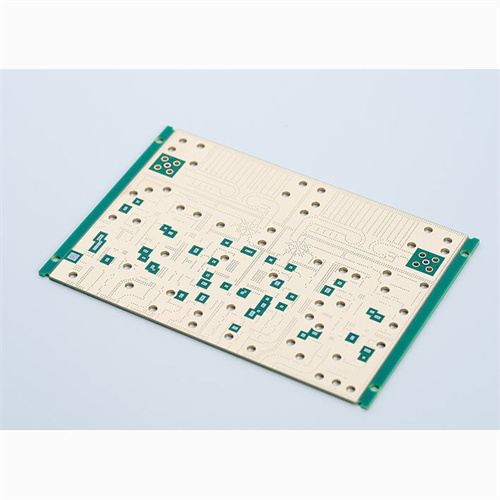

Introduction of Taconic RF-35 PCB
1. Advantages of Taconic RF-35: low cost; excellent peel strength; very low DF; low hygroscopicity; very high thermal reliability.
2. Applications of Taconic RF-35: filters, couplers, separators, combiners and mixers; antennas, high power amplifiers, TMAs, TMBs, LNAs, repeaters, passive components, medical scanners.
Technical parameters of Taconic RF-35 PCB
Model:Taconic RF-35 PCB Board
Material:Taconic RF-35
Layer:2L DK:3.48
Finished Thickness:0.8MM
Coppper Thickness:10Z
Dielectric Thickness:0.76mm
Thermal Conductivity:0.69w/m.k
Surface Treatment:Immersion Tin
Application:Communication PCB
1. RF-35 is an organic ceramic laminate in TACONIC's product ORCER.
2. It is a glass fiber cloth based reinforced glass material that combines TACONIC's ceramic filled technology and glass fiber covered Teflon PCB technology.
3. RF-35 is the best choice for low-cost, high-volume commercial microwave and radio frequency applications.
4. RF-35's glass transition temperature, more than 315 degrees Celsius.
5. RE-35's ultra-low water absorption and low loss factor minimizes phase shift in the frequency range
6. RE-35's dimensional stability is the use of glass fiber cloth in its design and development.
7. RF-35 Teflon PCB material, generally single-sided or double-sided 1/20Z, 10Z and 20Z building electrolytic copper foil, can be selected according to the needs of different sizes of the sheet.
