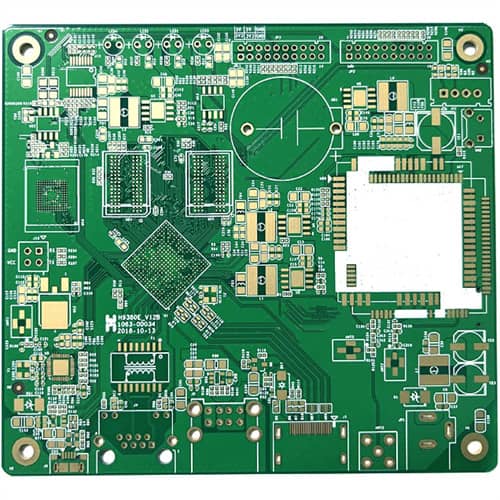

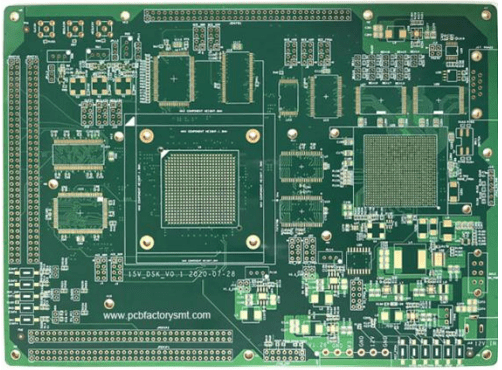

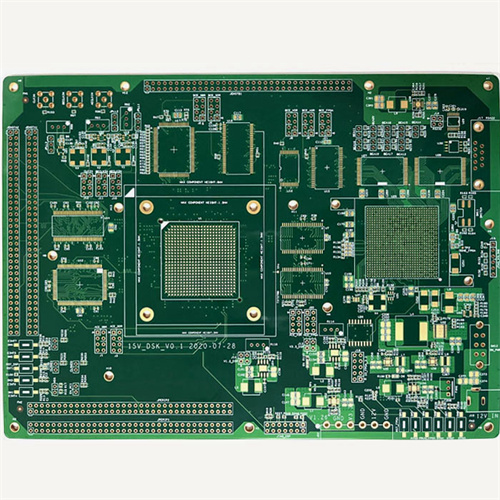

Introduction of 6-Layer PCB
With the maturity of 6-layer PCB only technology, customers are increasingly concerned about the cost of mass production of 6-layer PCB; SSPCB is a PCB professional manufacturer, we have highly automated multi layer PCB production equipment to meet the delivery and quality requirements of customers producing 6-layer PCB, further reducing the manufacturing cost of 6-layer PCB.
Technical parameters of 6-Layer PCB：
Model: 6 Layer PCB
Material: S1141.S1000.370HR
Layer: 6 Layer Circuit
Solder Mask Color:Green
Silk Screen: White
Finished Thickness:1.0mm
Copper Thickness:1/H/H/H/H1 OZ
Surface Treatment:Immersion Gold/OSF
Min Trace: 3mil(0.75mm)
Min Space: 3mil(0.75mm)
Application: Consumer electronics
4-layer and 6-layer PCB
1. 6-layer PCB have higher technical capabilities than 4-layer PCB. 6-layer PCB's inner layers generally provide power for a variety of electronic equipment, industrial applications and technical equipment to reduce the chance of electromagnetic interference and crosstalk;.
2. 6-layer PCB circuit board manufacturing is also used in fire alarm systems to make them more effective.
3. Can even be seen in optical receivers, cell phone transmission, GPS devices, industrial control equipment, heart monitors and other health equipment 6-layer circuit boards.
4. 6-layer PCB are similar in structure to 4-layer PCB, but 6-layer circuit boards are equipped with two additional rows of dielectric material and two layers of copper.
FAQ
Q1. What documents do you need to prepare if you want to get a quote from us?
A: PCB boards need to prepare Gerber files, including RS274X, ODB++, DXF, PCB, PCBDOC and other formats.
For PCBA (PCB with soldered components), in addition to the files of PCB, you also need to prepare BOM list (component list), Pick and Place file (txt format), physical sample drawing or 3D PDF version file, etc.
PCB layout requires a PCB schematic and PCB outline drawing.
For PCB design, you need to express your ideas and we will discuss whether we can implement your ideas.
Q2. Do you have a minimum order quantity?
A: We have the flexibility to handle both small and large volume production. We do not have any minimum order quantity, and the smallest order we accept is 1 piece.
In general, the higher the quantity produced, the lower the unit price and the longer the delivery time.
Q3. How can we keep our product information and design documents confidential?
A: Your files are completely safe and secure. We protect the intellectual property of our clients throughout. All files from our clients are never shared with any third party.
Q4. How long is the delivery time?
A: The production time for standard PCB samples is 1-7 days, 7-10 days for small batch production, and 12-25 days for large orders.
For the production of non -standard PCB and PCBA, please send the reference file and production requirements to sales@pcbfactorysmt.com，we will reply to you as soon as possible.
Q5. What are the main products of your PCB / PCBA service?
A: Industrial control, automotive, medical equipment, communication electronics, aviation, LED...
Q6. How long does it take for PCB and PCBA quotation?
A: PCB quotation can be completed within 0.5-2 hours PCBA depends on the number of components, simple can be completed within 6 hours, complex 12-36 hours can be completed.
Q7. Shipping fee?
A: Usually we offer EXW, FCA, FOB, CIF and DDU terms, if there is no special request, the default terms quoted are FOB Shenzhen. Please mention the terms and conditions when you have any request.
We work with courier companies including DHL, FedEx, UPS, TNT and EMS, with air and sea freight also optional.
Shipping costs are determined by the destination, weight, and package size of the shipment. If you need us to quote the shipping cost, please let us know.
Q8. Do you accept process materials from customers?
A: Yes, we can source components and we accept components from our customers.
