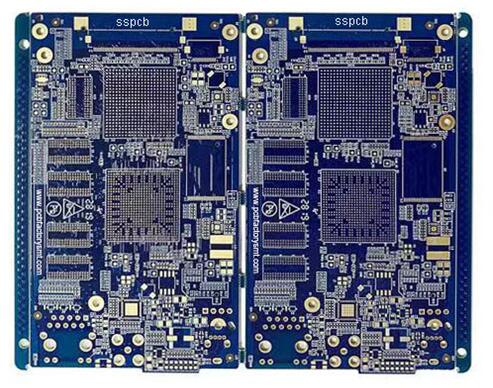

Technical parameters of 24 Layers Communication backplane PCB
Model: 24 Layers Communication backplane PCB
Material:Panasonicm6
Layer: 24Layers Color:Blue/White
Finished Thickness:2.0mm
Copper Thickness:10Z
Surface Treatment:Immersion Gold
Min Trace:6mil(0.15mm)
Min Space:6mil(0.15mm)
characteristic: High multilayer
Application:communication backplane PCB
Five reasons to choose SSPCB for communication PCB?
1. We choose Roaers,Taconic,Arlon,Nelco,Isola,Panasonic and other top high-frequency PCB materials, high-speed PCB materials.
2. We have plasma debinding machine specially designed for communication PCB, which can produce surface treatment process rarely seen in ordinary PCB factories: silver plating, tin plating, silver plating, tin plating.
3. Mature high frequency PCB mixing and pressing technology: FR4+PTFE, FR4+408hr, FR4+Rogers, ceramic+fr43mil/3mil, impedance tolerance can be controlled within ±5%.
4. 260 production team with rich experience in high frequency PCB material and high speed PCB material to ensure stable product performance.
5. Through the ISO system certification, in strict accordance with the international quality system standards control, strict implementation of quality PDCA cycle process, continuous improvement of product performance.
