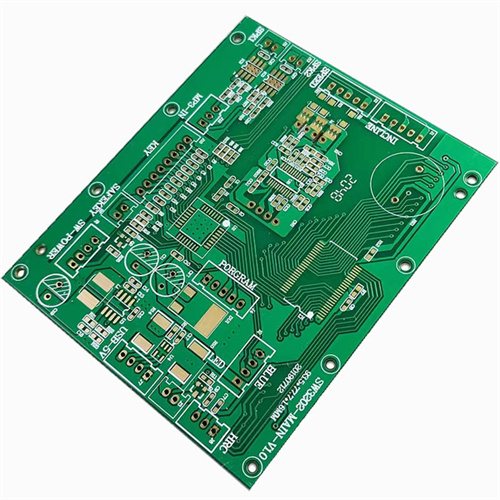

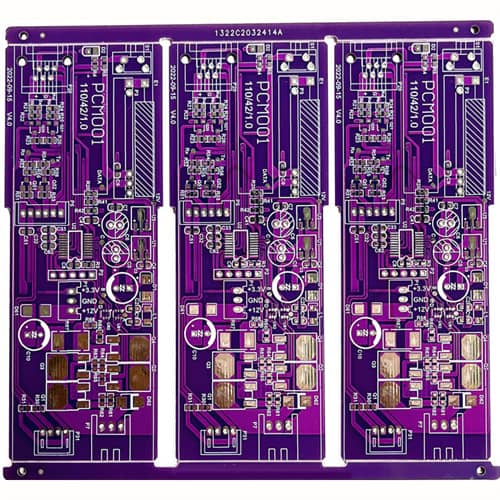

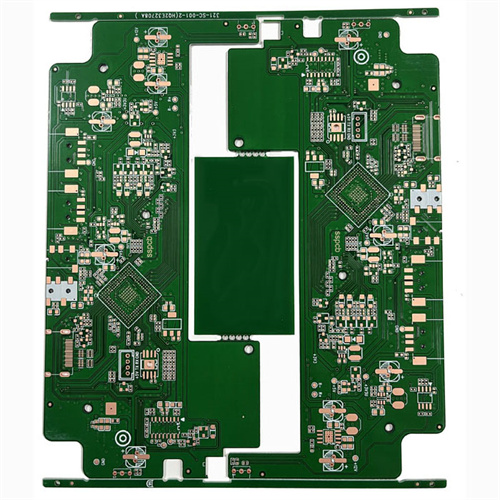

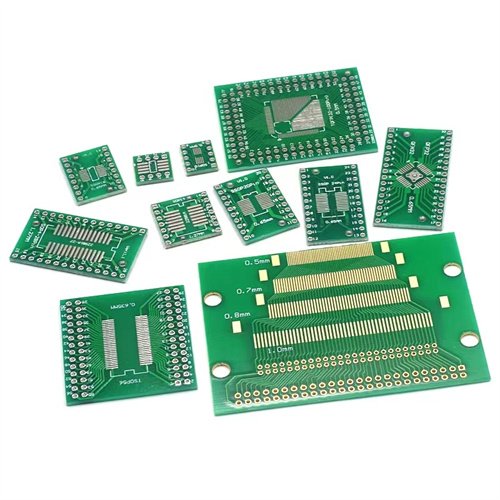

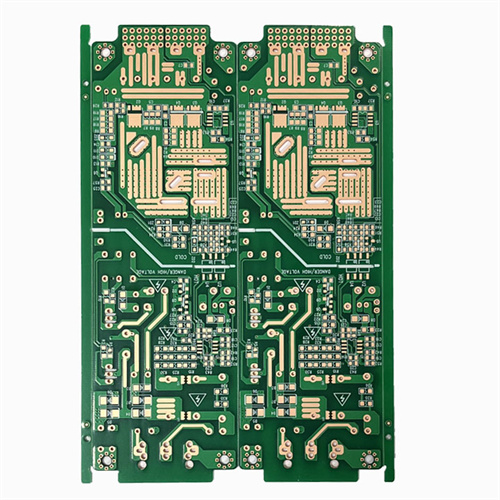

Introduction of 2-Layer PCB
2-layer PCB is the most common PCB circuit board with conductive graphics on both sides of the insulating substrate, which is widely used because both sides can be wired, greatly reducing the difficulty of wiring.
Technical parameters of 2-Layer PCB
Model: 2 layer PCB
Material:FR4
Material manufacturer:KB.SYISOLA
Layer: 2Layer
Color:Green/White/Black
Finished Thickness:0.15mm-12mm
Copper Thickness:1Z-60Z
Surface Treatment: Immersion Gold/OSP/HASL
Application products: power adapter control pane
Why choose SSPCB?
1.SSPCB has passed ISO9001, UL, RoHS and other quality control system certifications.
2.The factory production line has introduced precision circuit board production and inspection equipment, and has an experienced PCB production technology team, forming a perfect guarantee system and strict quality control.
3.SSPCB is produced in strict accordance with IPC standards. Acceptance standards to ensure that the products meet customer quality requirements and IPC standards.
4.SSPCB has a complete process of PCB production with rich product types.
FAQ
Q1. What documents do you need to prepare if you want to get a quote from us?
A: PCB boards need to prepare Gerber files, including RS274X, ODB++, DXF, PCB, PCBDOC and other formats.
For PCBA (PCB with soldered components), in addition to the files of PCB, you also need to prepare BOM list (component list), Pick and Place file (txt format), physical sample drawing or 3D PDF version file, etc.
PCB layout requires a PCB schematic and PCB outline drawing.
For PCB design, you need to express your ideas and we will discuss whether we can implement your ideas.
Q2. Do you have a minimum order quantity?
A: We have the flexibility to handle both small and large volume production. We do not have any minimum order quantity, and the smallest order we accept is 1 piece.
In general, the higher the quantity produced, the lower the unit price and the longer the delivery time.
Q3. How can we keep our product information and design documents confidential?
A: Your files are completely safe and secure. We protect the intellectual property of our clients throughout. All files from our clients are never shared with any third party.
Q4. How long is the delivery time?
A: The production time for standard PCB samples is 1-7 days, 7-10 days for small batch production, and 12-25 days for large orders.
For the production of non -standard PCB and PCBA, please send the reference file and production requirements to sales@pcbfactorysmt.com，we will reply to you as soon as possible.
Q5. What are the main products of your PCB / PCBA service?
A: Industrial control, automotive, medical equipment, communication electronics, aviation, LED...
Q6. How long does it take for PCB and PCBA quotation?
A: PCB quotation can be completed within 0.5-2 hours PCBA depends on the number of components, simple can be completed within 6 hours, complex 12-36 hours can be completed.
Q7. Shipping fee?
A: Usually we offer EXW, FCA, FOB, CIF and DDU terms, if there is no special request, the default terms quoted are FOB Shenzhen. Please mention the terms and conditions when you have any request.
We work with courier companies including DHL, FedEx, UPS, TNT and EMS, with air and sea freight also optional.
Shipping costs are determined by the destination, weight, and package size of the shipment. If you need us to quote the shipping cost, please let us know.
Q8. Do you accept process materials from customers?
A: Yes, we can source components and we accept components from our customers.
